Coating Thickness
Description:

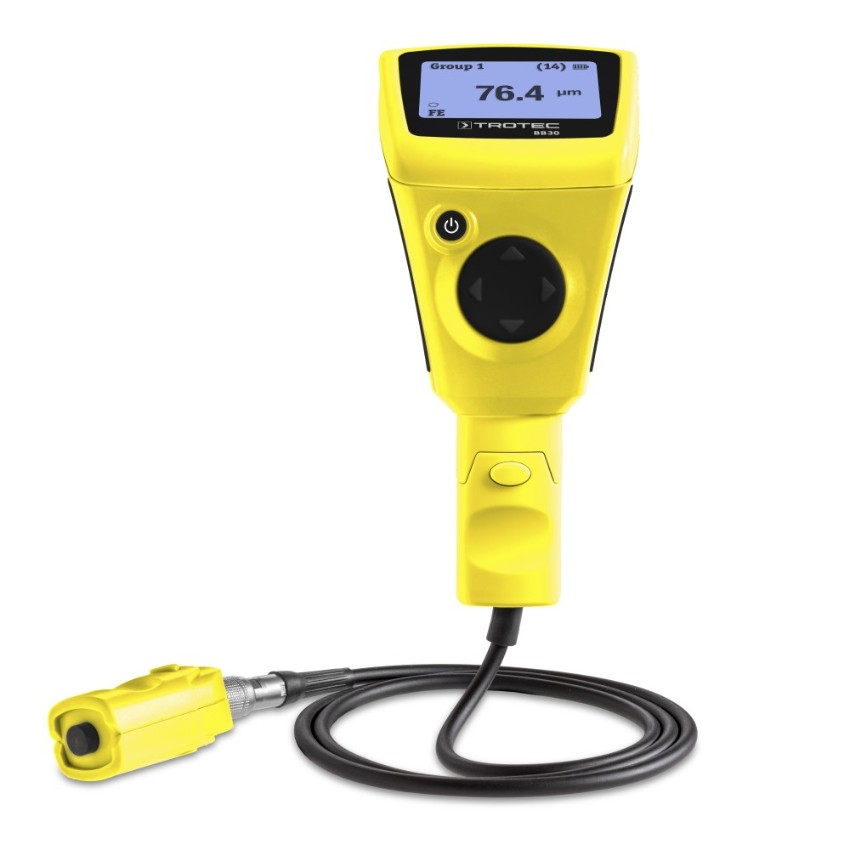

With the BB30 you can quickly and accurately determine the strength of non-magnetic layers, such as paints, varnishes, plastic coatings, galvanizing, enamelling or chrome plating on ferromagnetic and non-ferromagnetic metallic substrates. The sensitive dual sensor is just as accurate on iron and steel as it is on non-ferrous metals such as aluminum, magnesium or titanium.
Features:
Technical Specifications:
- Dual sensor for thickness measurement of non-magnetic layers on all magnetic and non-magnetic metals
- Large measuring range from 0 μm to 2,000 μm
- Spring loaded probe
- V-groove for measurement at curves
- Practical probe extension for reaching hard to reach measuring points
Technical Specifications:
- Sensor: Ferromagnetic surfaces, non-metallic substrates
- Functional principle: Magnetic induction, eddy current
- Guaranteed tolerance:
- Fe: ± 2% + 2 μm (at 0 μm to 1,000 μm)Fe: ± 3.5% + (at 1,000 μm to 2,000 μm)nFe: ± 2% + 2 μm (at 0 μm to 1,000 μm)nFe: ± 3.5% + (at 1,000 μm to 2,000 μm)
- Bending radius minimum (surface): Fe: 1.5mm / nFe: 3mm
- Smallest measuring surface: Fe: Ø 7mm / nFe: Ø 5mm
- Critical base layer thickness: Fe: 0.5μm / nFe: 0.3μm
- Measuring range: 0 μm to 2,000 μm
- Accuracy: ± 0.1μm (at 0μm to 100μm)± 1μm (at 100μm to 1000μm)± 0.01μm (at 1,000μm to 2,000μm)
- Functions: Minimum value display, maximum value display, average display, automatic switch-off, backlit display, sensor for ferromagnetic surfaces, sensor for non-ferrous metal substrates, error indicator for incorrect measurement, Bluetooth
- Power supply: 2 x 1.5V, AAA
- Dimensions: 114mm x 27mm x 54mm
- Weight: 152 g
  |
