Optical Inspection

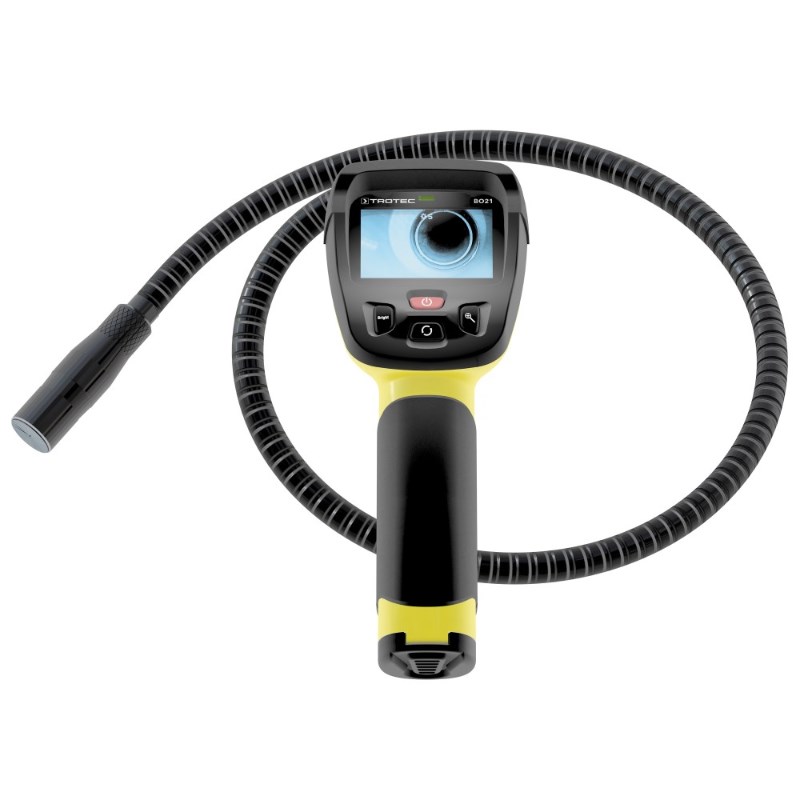

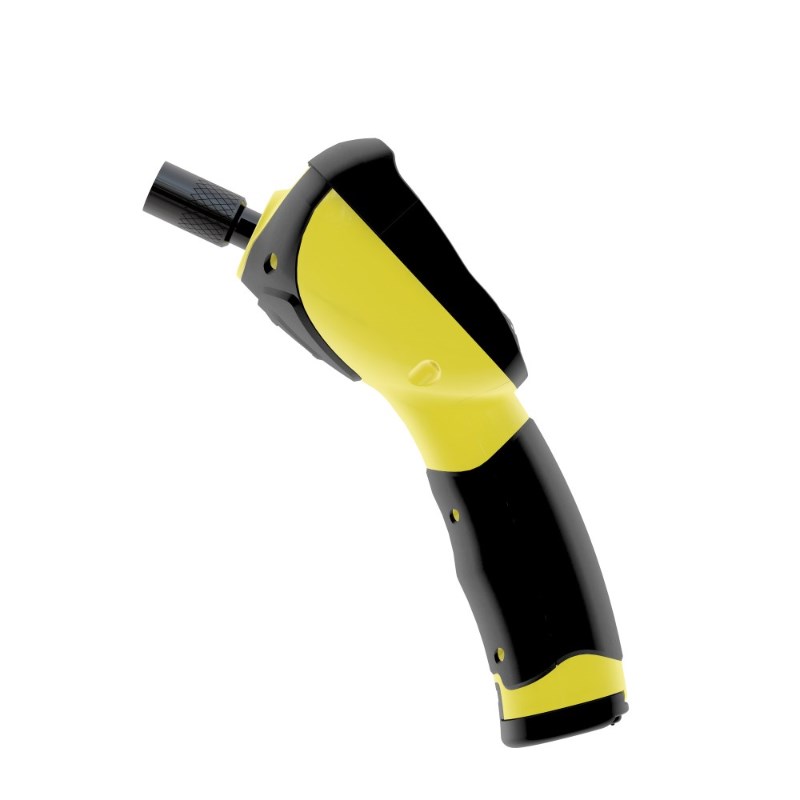

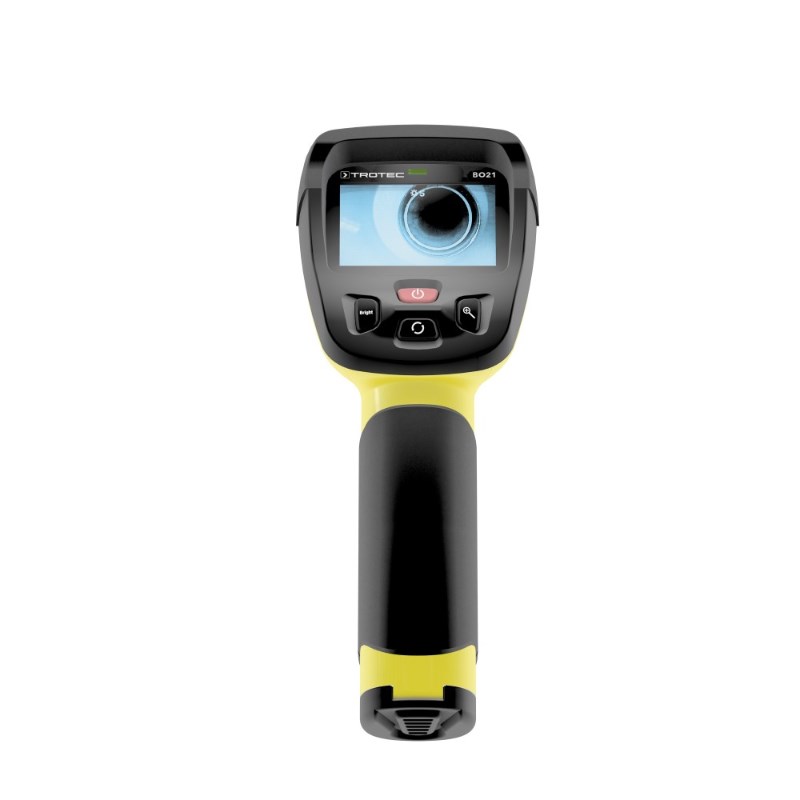

BO21 Videoscope

TROTEC-BO21

  • Light, easy-to-handle compact device with semi-rigid gooseneck probe
  • Memory function to take individual photographs or record complete video sequences
  • Robust videoscope probe with fixed-focus lens and water-proof camera head (IP67 type of protection)
  • 3.5-inch LCD colour screen

add to wishlist?

Get a Quote?

Send Wishlist

Description:

With the new BO26 Videoscope the necessary visual checks for wear even in poor visibility areas to be done effectively.

Technical Specification
  • Probe: ø 17 mm / length 1,000 mm
  • Focus area: 50 - 150 mm
  • Backlight type: LED Quad
  • Interface: USB (Mini 5-pin), Video Out (Composite Video)
  • Data storage: Internal: 60 MB flash memory; external: slot for SD memory card
  • Operating/ storage temperature: -10°C to + 50°C
  • Functions: video and photo recording, photo storage with date and time, brightness control, multilingual on-screen menu, 5° - 15° - 30° - 90°- Image rotation function, auto power off
  • Power supply: 3.7V Li-ion battery; rechargeable
  • Weight: 580 g
  • Scope of delivery: Meter incl. battery, side-view mirror, hook and magnet attachment, USB cable, charger, carry case, Quick Guide
