Leveling
Description:

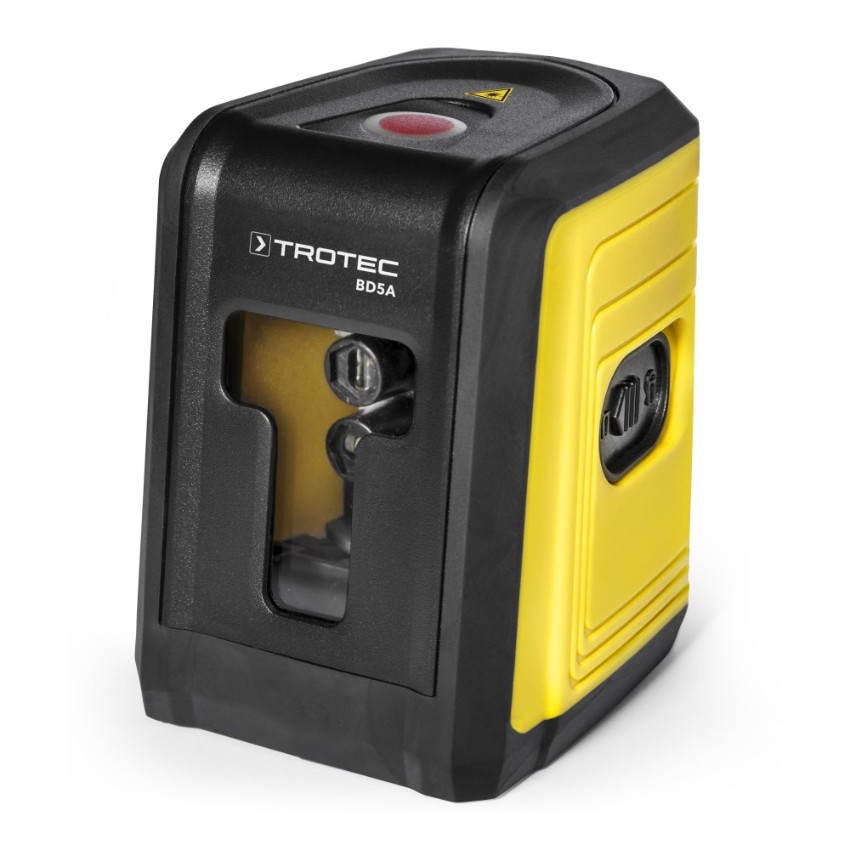

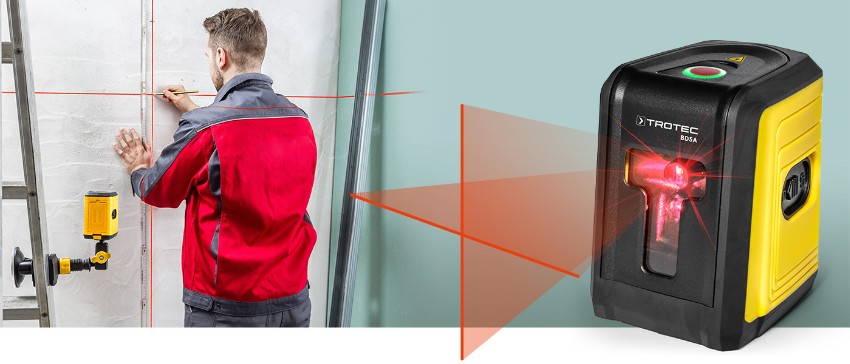

The cross line laser is a state-of-the-art spirit level and superior to its old-fashioned predecessor in every respect. Whether you want to precisely align pictures in parallel at right angles, drill holes on a straight projected line or attach tiles in a strict grid – using the cross line laser BD5A from Trotec, all this and much more is easily possible.
Features:
- Projects light-intense laser lines
- at distances of up to 10 m
- Self-levelling laser –
- always automatically aligned straight
- Laser projection either as cross lines or as individual horizontal or vertical line
Technical details:
- Inclination measurement - range Auto-leveling: ± 4 °
- Laser range: up to 10 m
- Laser class: 2
- Laser power <1 mW
- Wavelength: 650 nm
- Display: multi-function LED
- Plastic housing
- Power supply: internal battery 2 x 1.5 V, AA
- Ambient conditions Temperature: -20 °C to + 50 °C
- Dimensions (L x W x H): 83 x 60 x 72 mm
- Weight: 275 g
