ETI

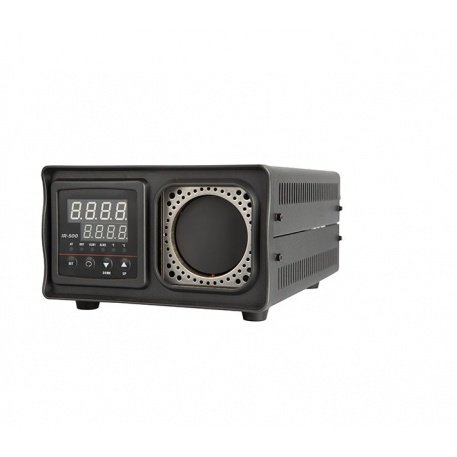

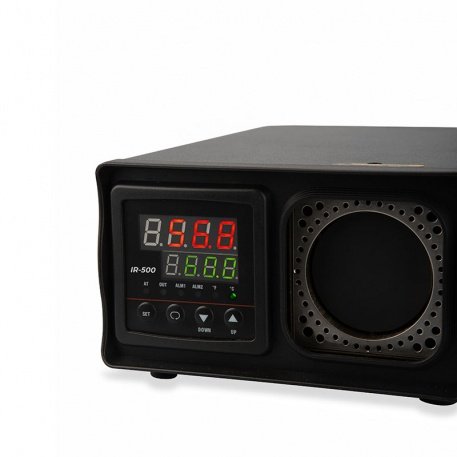

The IR-500 Black Body Calibrator is a stable heat source for checking the calibration of infrared digital thermometers that require regular temperature calibration checks or validation. The unit features an easy to read LED display, and controls the black body surface temperature over the range of 50 to 500 °C. It reaches an upper temperature of 500 °C in about 40 minutes.
Technical Specifications
- range: 50 to 500 °C
- resolution: 0.1 °C/°F
- accuracy: ±1 °C below 100 °C ±2 °C from 100 to 200 °C ±3 °C from 200 to 500 °C * Better than ±0.5 °C if used in conjunction with a Reference Thermometer
- emissivity: 0.95
- target size: Ø58 mm
- cooling time: 30 minutes max to 100 °C
- heating time: 40 minutes to max
- power source: 110 volt AC, 3A or 230 volt AC (±10%), 1.5A
- dimensions: 114 x 180 x 233 mm
- weight: 2682 grams
 |  |
